Description

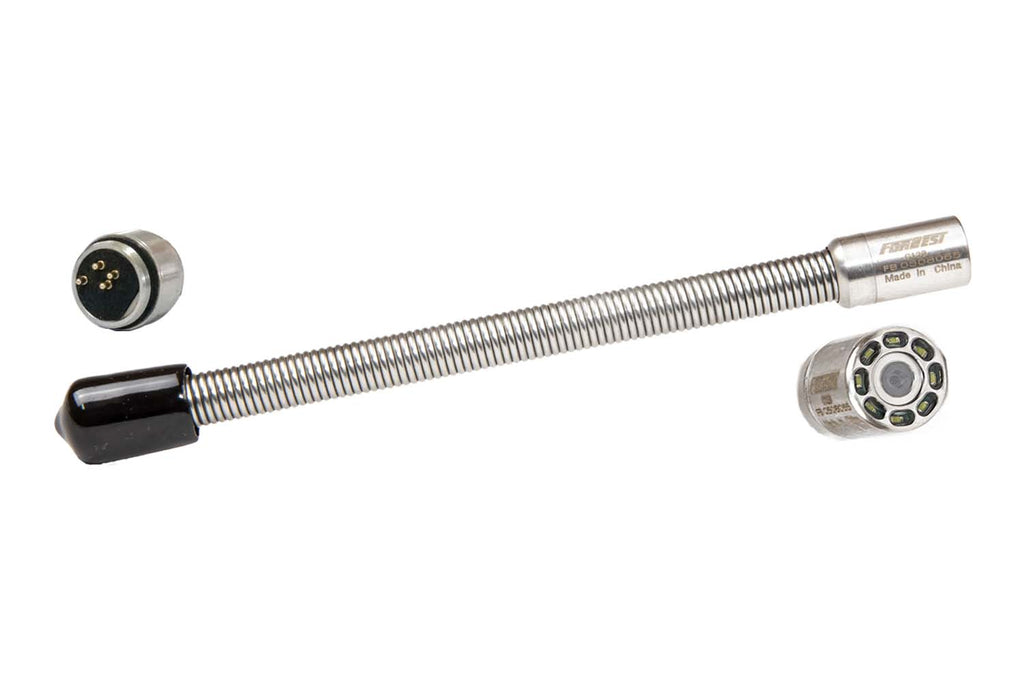

The C12 is a compact 1/2” (12mm) waterproof color camera head designed for tight 1-2” pipe inspections, including 1.5”-2” P-traps. It’s the best choice when you need maximum maneuverability in small-diameter lines.
This product includes the option to choose C12 or C13:

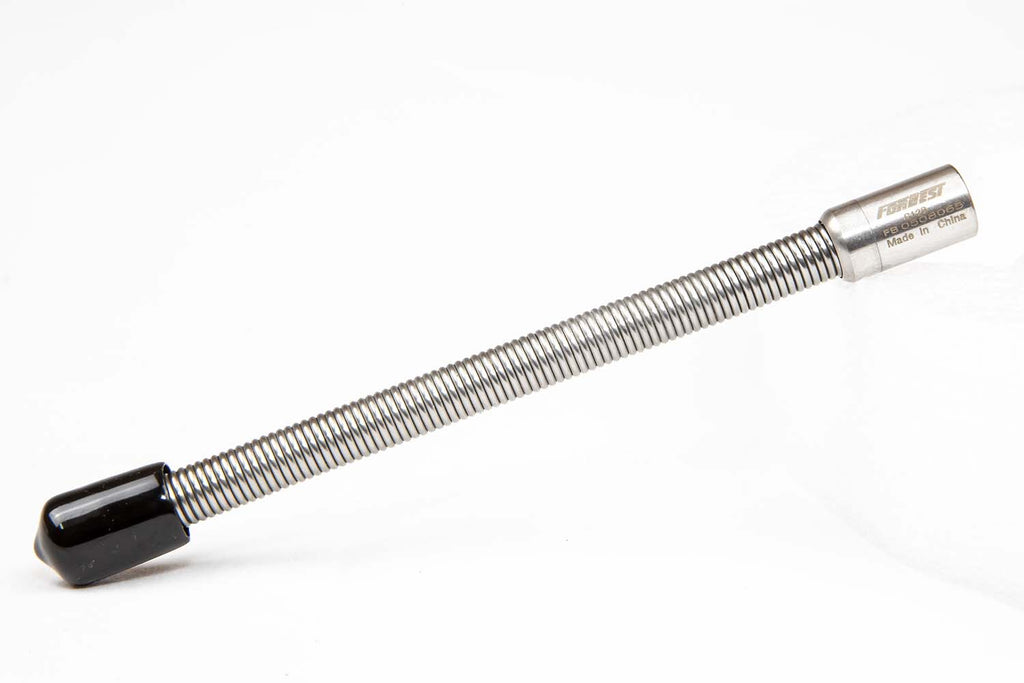

- CHD-C12: 1/2” C12 12mm Mini Waterproof Color Camera - No transmitter

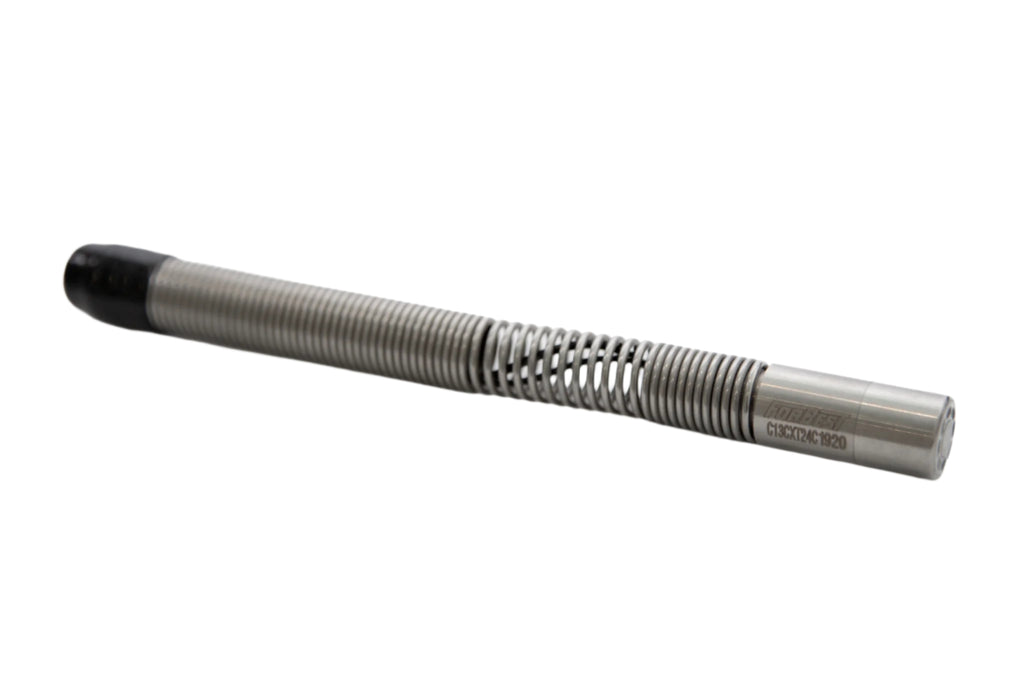

- CHD-T-C13: 1/2" C13 12mm Mini Waterproof Color Camera with built-in 512Hz Transmitter - Transmitter
Specifications
| Specification | Details |
|---|---|
| Camera Diameter | 1/2” (12mm) |
| 512Hz Transmitter | Optional built-in 512Hz (CHD-T-C13) |
| Pipe Range | 1-2” |
| Best for P-Traps | 1.5-2” |
| Lens | Sapphire lens |
| Lighting | 8 LEDs |
| Housing | Stainless steel |
| Warranty | One-Year Limited Manufacturer Warranty |
Compatibility
- Cable & Reel: Pair with CR-C12B
- Control Station: Designed to work with the CTRSTA-10 and also compatible with any Forbest control station

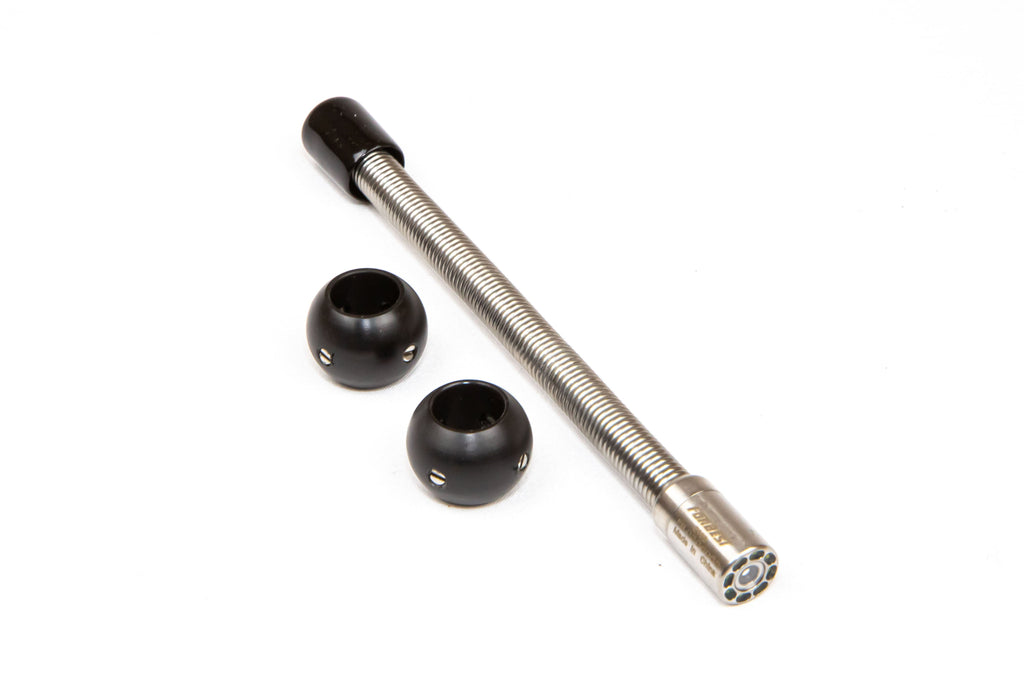

- Skid: Includes a small plastic protective skid to help protect the camera head during use
- Soft Cable:
Best For
- 1-2” residential drain lines
- 1.5-2” P-trap inspections
- Kitchen and bathroom branch lines
- Tight bends where larger heads won’t pass
- Contractors who need a compact, reliable mini head
Frequently Asked Questions
1. Does the C12 include a 512Hz transmitter?
No. If you need locating capability, choose the C13, which includes a built-in 512Hz transmitter.
2. What pipe size is the C12 best for?
It’s designed for 1-2” pipes, and it works especially well in 1.5-2” P-traps.
3. Does the C12 require a spring kit?
No. A spring kit is not needed for the C12.
4. Which cable does the C12 work with?
The C12 must be paired with CR-C12B.
5. Is this an HD or self-levelling camera head?
No, the C12 is not HD and it is not self-levelling.
