Description

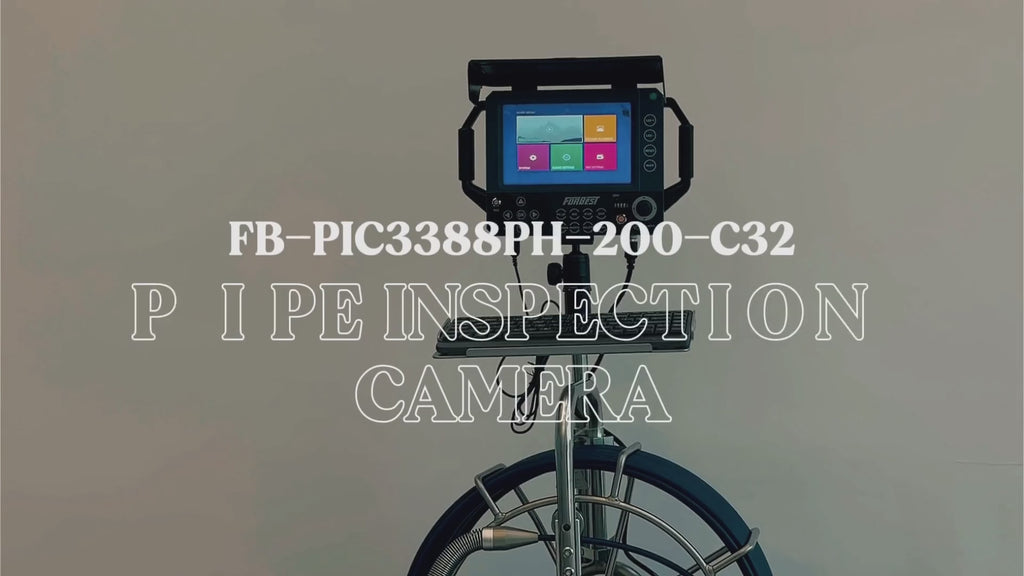

The 3388PH HD sewer camera system combines an 8” HD control station, 200ft push cable, and your choice of a C32 HD pan-tilt or C40 HD self-leveling camera head for detailed inspections in 4”–10” pipes. Both camera options record in 1080p HD and include a built-in 512Hz sonde transmitter for precise locating.
The C32 option provides full 360° pan and 180° tilt control, making it ideal for inspecting larger lines and viewing specific areas inside the pipe. The C40 option features self-leveling technology and 6× zoom, keeping the image upright while allowing closer inspection of defects, joints, and pipe walls.
The 8” HD control station includes built-in WiFi, HDMI output, and mobile app connectivity, allowing inspections to be viewed and recorded directly on your smartphone. A built-in keyboard pad, microphone, and tablet support make documenting and sharing inspections easier in the field.
Specifications
| Specification | Details |
|---|---|
| Pipe Range | 4”–10” |
| Cable Length | 200ft |
| Cable Diameter | 8mm |
| Cable Type | Reinforced fiberglass push cable with meter counter |
| Camera Head Options | C32 HD Pan-Tilt / C40 HD Self-Leveling |
| Camera Diameter | 1.25” (32mm) / 1.5” (40mm) |
| Resolution | 1080p HD |
| Pan-Tilt | 360° Pan / 180° Tilt (C32 only) |
| Self-Leveling | Yes (C40 only) |
| Zoom | 6× Zoom (C40 only) |
| 512Hz Transmitter | Built-in |
| Monitor Size | 8” HD LCD |
| Control Station Features | HDMI output, WiFi module, mobile app view, keyboard pad, microphone, anti-glare visor, tablet holder |
| Storage | Internal memory and smartphone via mobile app |
| Battery | Rechargeable Li-ion battery |
| Battery Life | Up to 4 Hours |
| Included Accessories | Interchangeable skids, power adapter, battery adapter |
| Warranty | One-Year Limited Manufacturer Warranty |
